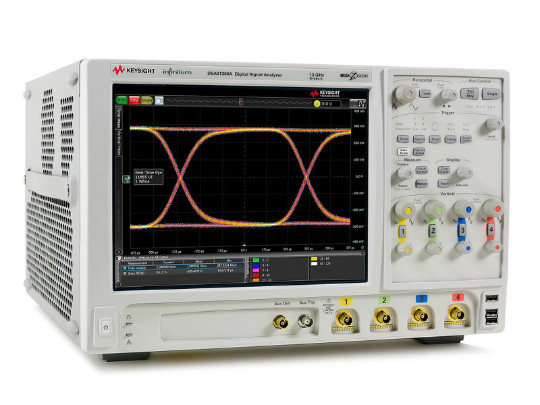

DSA91304A Infiniium 高性能示波器：13 GHz
主要特性和功能- 13 GHz
- 4个模拟通道
- 高达 1 Gpts 存储器和 40 GSa/s 采样率可以提供更完整的信号迹线捕获
- 50 mV/格时低至 1.73 mVrms 的本底噪声和深入的抖动分析功能可以确保准确的测量精度
- 硬件加速去嵌入能够更轻松地补偿探头、夹具和通道效应
- 结合一致性测试、调试和分析应用软件可以增强示波器的可用性
- 结合用户定义的应用软件可以实现测量自动化
技术指标
带宽 13 GHz
通道数 4
最大存储器深度 1 Gpts
最大采样率 40 GSa/s
ADC 位数 8 bits
最短上升/下降时间
32 ps (10-90%), 23 ps (20-80%)
选件:
Calibration Documentation
DSO90000-A6J ANSI Z540-1-1994 Calibration
DSO90000-1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)
DSO90000-AMG Calibration + Uncertainties + Guardbanding (Accredited)
Software Compliance Applications
DSO90000A-021 Ethernet compliance application, fixed perpetual license
DSO90000A-022 PCI express compliance application, fixed perpetual license
DSO90000A-023 HDMI compliance application, fixed perpetual license
DSO90000A-027 SAS compliance application, fixed perpetual license
DSO90000A-029 USB2.0 compliance application, fixed perpetual license
DSO90000A-030 XAUI compliance application, fixed perpetual license
DSO90000A-031 DDR1 compliance application, fixed perpetual license
DSO90000A-033 DDR3 compliance application, fixed perpetual license
DSO90000A-032 DDR2 compliance application, fixed perpetual license
DSO90000A-035 MIPI D-PHY compliance application, fixed perpetual license
DSO90000A-036 Automated test application, 10GBASE-T, fixed perpetual license
DSO90000A-038 SATA 6Gb/s compliance, fixed perpetual license
DSO90000A-041 USB 3.1: 5 Gbps only Transmitter Compliance Software, fixed perpetual license
DSO90000A-043 SAS-2 compliance application, fixed perpetual license
DSO90000A-044 PCI express compliance application for PCIe 1.0, 1.1 ,2.0 and 3.0, fixed perpetual license
DSO90000A-047 MIPI M-PHY compliance application, fixed perpetual license
DSO90000-058 DDR4 compliance test software application ,installed fixed perpetual license
DSO90000-060 Energy Efficient Ethernet Electrical Performance Validation and Conformance application, fixed perpetual license
DSO90000-064 Compliance application eMMC - installed
DSO90000-073 MOST compliance Application for Infiniium scopes - installed fixed, perpetual license
DSO90000-065 BroadR-Reach compliance application for Infiniium scopes - installed fixed, perpetual license
DSO90000-077 HDMI 2.0 electrical performance validation and compliance, fixed perpetual installed license
DSO90000-076 SAS-3 Compliance Test Application, fixed perpetual installed license
DSO90000-074 Ethernet KR compliance, installed fixed perpetual license
DSO90000-078 SFP+Compliance application, fixed perpetual license
DSO90000-081 USB 3.1: 5 Gbps and 10 Gbps Transmitter Compliance Software, fixed perpetual license
DSO90000-083 Electrical Performance Validation compliance application eDP 1.4, fixed perpetual license
DSO90000A-059 OIF-CEI 56G Draft PAM-4 Measurements, fixed perpetual license
DSO90000-085 DisplayPort 1.4 Electrical Performance Validation and Compliance, fixed perpetual license
DSO90000-090 MIPI C-PHY Compliance, fixed perpetual license
DSO90000-092 IEEE 802.3bs Draft PAM-4 Measurements, fixed perpetual license
DSO90000-089 Hybrid Memory Cube Compliance Test, fixed perpetual license
DSO90000-094 LP/DDR4 Compliance Software Data Analytics Web Service, fixed perpetual license
DSO90000-080 PCIe 4.0 (2.5G, 4G, 8G, 16G) Compliance Application, fixed perpetual license
DSO90000-096 PCIe 3.x (2.5G, 5G, 8G) Compliance Application, fixed perpetual license
Peripheral Connection
DSO90000A-805 GPIB card-interface - installed
DSO90000A-823 PCI express cards - installed
Data Storage
DSO90000A-800 Standard hard drive - installed
DSO90000A-801 Removable hard drive - installed
Additional Memory
DSA90000A-50M Memory - 50M memory / channel upgrade - installed
DSA90000A-100 Memory - 100M memory / channel upgrade - installed
DSA90000A-200 Memory - 200M memory / channel upgrade - installed
DSA90000A-500 Memory - 500M memory / channel upgrade - installed
DSA90000A-01G Memory - 1G memory / channel upgrade - installed
Accessories
DSO90000A-1CM Rack mount kit
DSO90000A-821 Additional Precision BNC to SMA adapters includes qty 2
