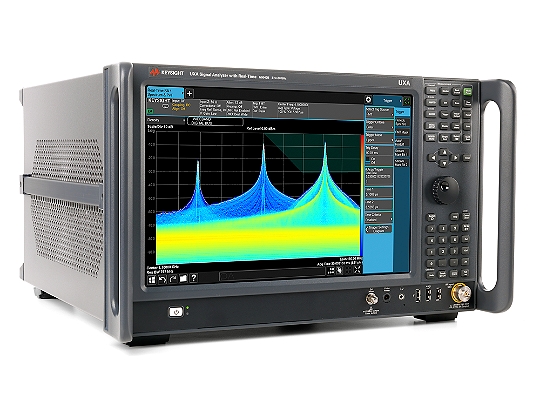

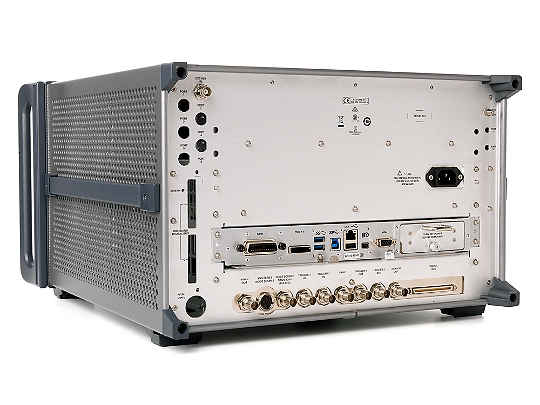

N9040B UXA 信号分析仪

提示：点击图片可以放大

主要特性和功能

通过为测量具挑战性的信号提供更宽广（高达 1 GHz）、更深入的视野，查看设计的真实性能
利用出色的相位噪声性能、78 dBc 无杂散动态范围和 510 MHz 带宽，您可以更好地测量设计的频谱纯度
通过是德科技智能混频器可将射频输入频率扩展到 110 GHz，使用其他厂商的混频器可扩展到 THz 级
全频段实时频谱分析能够捕获间歇性信号
改进的显示平均噪声电平（DANL）低噪声路径有助于捕获更低电平杂散信号

Frequency range
N9040B-508	频率范围，3 Hz 至 8.4 GHz 3 Hz 至 8.4 GHz 3.6 或 8.4 GHz 可选内置前置放大器可作为售后升级选件
N9040B-513	频率范围，3 Hz 至 13.6 GHz 3 Hz 至 13.6 GHz 3.6 或 13.6 GHz 可选内置前置放大器可作为售后升级选件
N9040B-526	频率范围，3 Hz 至 26.5 GHz 3 Hz 至 26.5 GHz 3.6 或 26.5 GHz 可选内置前置放大器可作为售后升级选件
N9040B-550	Frequency Range 3 Hz To 50 GHz Frequency Range: 3 Hz to 50 GHz Available at time of purchase only
N9040B-544	Frequency Range 3 Hz To 44 GHz Frequency Range: 3 Hz to 44 GHz Available at time of purchase only

Connector options
N9040B-ALV	辅助对数视频输出输出变化大约 25 mV/dB 屏幕上方的输出为 1.6 V 输出阻抗为 50 Ω（标称值）可作为售后升级选件
N9040B-C35	连接器，射频输入，3.5 mm 阳头使用 3.5 mm 连接器代替标配的 N 型连接器可作为售后升级选件
N9040B-CRP	连接器，可编程后面板中频输出中频输出的频率可以在 10 MHz 至 75 MHz 之间以 500 kHz 步进进行调整中频输出带宽为 100 MHz 标称值，中心频率为 70 MHz 连接器类型：SMA（阴头），50 Ω 阻抗标称值可作为售后升级选件
N9040B-YAV	Y 轴输出屏幕视频输出与显示视频相同模拟输出连接器的对数视频满标度为 1 V 模拟输出的线性视频采用线性标度可作为售后升级选件

Preamplifier
N9040B-P08	前置放大器，8.4 GHz +35 dB 增益 -172 dBm DANL，配有前置放大器和本底噪声扩展前置放大器能够增强探测低电平信号的能力可作为售后升级选件
N9040B-P13	前置放大器，13.6 GHz +35 dB 增益 -170 dBm DANL，配有前置放大器和本底噪声扩展前置放大器能够增强探测低电平信号的能力可作为售后升级选件
N9040B-P26	前置放大器，26.5 GHz +35 dB 增益 -162 dBm DANL，配有前置放大器和本底噪声扩展前置放大器能够增强探测低电平信号的能力可作为售后升级选件
N9040B-P44	Preamplifier, 44 GHz +40 dB gain up to 44 GHz for enhanced sensitivity to low signal levels Up to –172 dBm DANL with preamp and noise floor extension Available as a post-purchase upgrade
N9040B-P50	Preamplifier, 50 GHz +40 dB gain up to 50 GHz for enhanced sensitivity to low signal levels Up to –172 dBm DANL with preamp and noise floor extension Available as a post-purchase upgrade

Bandwidth
N9040B-B2X	Analysis Bandwidth, 255 MHz Supports real-time spectrum analyzer Capture memory: 2 GB ADC resolution: 14 bits Available as a post-purchase upgrade
N9040B-B5X	Analysis Bandwidth, 510 MHz Supports real-time spectrum analyzer Capture memory: 2 GB ADC resolution: 14 bits Available as a post-purchase upgrade
N9040B-B25	分析带宽，25 MHz 捕获存储器：2 GB ADC 分辨率：12 位元可作为售后升级选件
N9040B-B40	Analysis Bandwidth, 40 MHz Capture memory: 2 GB ADC resolution: 12 bits Available as a post-purchase upgrade
N9040B-H1G	1 GHz 分析带宽分析带宽扩展至 1 GHz 频率范围：3 Hz 至 50 GHz ADC 分辨率：12 位包括 255 MHz（B2X）能力只在购买时提供

Performance options
N9040B-EA3	电子衰减器，3.6 GHz 步长：1 dB 范围：0 至 24 dB 包括机械衰减的完整范围：94 dB 可作为售后升级选件
N9040B-EMC	基本预兼容性 EMI 完全符合 CISPR 16-1-1（2010）标准的检波器高达 18 GHz 的 CISPR 频段预置使用 3 台检波器在游标处测量用于信号识别的调谐和侦听可作为售后升级选件
N9040B-FP2	快速功率，带宽高达 40 MHz 单次采集带宽：40 MHz 启用硬件加速快速功率测量为功率测量而优化可作为售后升级选件
N9040B-RTS	Real-Time Wideband I/Q Data Streaming Real-Time Wideband I/Q Data Streaming May be combined with X-COM IQC5255B for turnkey 255 MHz record and playback solution 16-bit I + jQ digital data at up to 300 MSamples/S, continuously variable based on span setting Available as a post-purchase upgrade
N9040B-FT1	Frequency Mask Trigger, Basic Detection License Capture elusive, intermittent signals for further analysis > 15 µs signal duration Seamless operation in 89600 VSA Software and N9067C pulse application Available as a post-purchase upgrade
N9040B-FT2	Frequency Mask Trigger, Optimum Detection License Capture elusive, intermittent signals for further analysis > 3.6 µs signal duration Seamless operation in 89600 VSA Software and N9067C pulse application Available as a post-purchase upgrade
N9040B-DUA	Duplex IF RTSA Enables control of 2 x 255MHz DIF for optimized frequency and time domain analysis in RTSA mode at the same center frequency Able to view RT spectrum, Power vs Time, Powergram, and Spectrogram all at the same time with independent time domain and frequency domain spans Requires option B5X and RT1 or RT2 Available as a post-purchase upgrade
N9040B-TDS	Time Domain Scan ~90% overlap in the time domain for amplitude accuracy and fast transient capture CISPR-compliant amplitude accuracy and weighted detector performance Monitor spectrum and amplitude probability distribution Available as a post-purchase upgrade

Calibration options
N9040B-A6J	ANSI Z540 一致性校准从工厂装运并经过 ANSI Z540 校准提供测量结果、不确定度数据和技术指标确定合格/不合格状态时不包含不确定度数据只在购买时提供
N9040B-UK6	包含测试数据的商业校准证书由是德科技工厂实施的商业校准校准证书印刷本关于从 Infoline 下载测试数据报告的指导只在购买时提供


Real time signal analysis
N9040B-RT1	Real-time analysis, basic detection, 255 MHz with B2X/H1G, 500 MHz with B5X, license
N9040B-RT2	Real-time analysis, optimum detection, 255 MHz with B2X/H1G, 500 MHz with B5X, license

Security features
N9040B-SF1	安全特性，不包括启动程序许可证密钥激活，提供额外的安全功能特性需要 A.12.06 版本或更高版本的软件可作为售后升级选件
N9040B-SF2	安全特性，禁止保存结果许可证密钥激活，提供额外的安全功能特性需要 A.14.00 版本或更高版本的软件可作为售后升级选件
N9040B-SSD	额外的可拆卸固态硬盘串行 ATA（SATA）数据接口的可拆卸固态硬盘坚固的可拆卸托架，少可插入 1500 次操作系统、软件和校准文件镜像可作为售后升级选件


N9040B-ESC	External source control

N9040B-DVR	USB DVD-ROM/CD-R/RW 驱动器连接到前面板或后面板上的 USB 端口从 Microsoft® Windows 用户界面访问 DVD 或 CD 介质可作为售后升级选件

N9040B-KB2	USB keyboard Smaller keyboard

N9040B-MLP	50 至 75 Ω 小损耗衰减器（N 型至 BNC）连接器：50 Ω N 型（阳头）至 75 Ω BNC（阴头）连接器插入损耗：5.7 dB 输入/输出回波损耗：20 dB 大输入功率：1 W 平坦度：+/- 2 dB 可作为售后升级选件

N9040B-MSE	Mouse, USB

N9040B-2CM	Rack mount flange kit 265.9mm H (6U) - two flange brackets, two standard rails, DARK COLORS

N9040B-2CP	Rack mount flange and handle kit 265.9mm H (6U) - two brackets, handles, rails, DARK COLORS

Application software
89601B	- 89600 VSA 软件蜂窝、无线连通性、航空航天、国防、通用同时查看多个时域、频域和调制域视图先进故障诊断工具包括触发、记录和回放支持超过 45 种是德科技测量平台
N6171A	MATLAB 软件创建任意波形定制测量/数据分析例程、仪器应用程序/测试系统自动化测量以及信号与报告生成可通过购买兼容仪器从是德科技直接获
N9063C	配有多点触控用户界面、适用于 UXA 的模拟解调测量应用软件多点触控用户界面对 AM、FM、PM 和 FM 立体声信号进行一键式测量显示调制参数：AM 深度、FM/PM 偏差、THD、SINAD、FM 立体声可作为售后升级选件
N9067C	Pulse Measurement Application, Multi-touch UI Automatically synchronize to pulsed signals up to 50 GHz and bandwidth of 510 MHz View key pulse signal modulation performance indicators and pulses in a time, frequency and phase-domains Runs inside X-Series signal analyzers with multi-touch UI 查看详情
N9068C	Phase Noise Measurement Application, Multi-touch UI 1-touch measurements for analyzing phase noise in frequency domain (log plot) & time domain (spot frequency) 查看详情
N9069C	噪声系数测量应用软件，多点触控用户界面噪声系数/增益测量一键式测量：噪声系数、增益、Y 因数、有效温度和热态/冷态功率密度支持 SNS 346 系列噪声源和 U7227x 系列 USB 前置放大器可作为售后升级选件查看详情
N9071C	GSM / EDGE / Evo Measurement Application, Multi-Touch UI GSM, EDGE and EDGE Evolution including VAMOS1 and Multi-Carrier BTS (MCBTS) per 3GPP GERAN standard Base station and mobile station RF transmitter measurements; analog baseband measurements One-button measurements with pass/fail per the standard
N9073C	W-CDMA/HSPA/HSPA+ Measurement Application, Multi-touch UI W-CDMA/HSPA/HSPA+ per 3GPP Release 99 to 8 Includes uplink/downlink RF transmitter measurements Transmit analog baseband measurements with BBIQ hardware 1-touch measurements with pass/fail per the standard
N9077C	WLAN 802.11a/b/g/j/p/n/ac/af/ah/ax Measurement Application, Multi-Touch UI Compliant to 802.11a/b/g/j/p/n, 802.11ac, 802.11af, 802.11ah, 802.11ax IEEE series standards for WLAN design/manufacturing test Manual settings for 802.11a-turbo mode One-button pass/fail measurements per standard
N9080C	LTE/LTE-Advanced FDD 测量应用软件，多点触控用户界面按照 3GPP 第 8 版到第 13 版标准进行 LTE 和 LTE-Advanced FDD 信号分析使用单一选件提供上行链路和下行链路测量多达 5 个子载波的载波聚合在具有多点触控用户界面的 UXA、PXA、MXA、EXA 和 CXA X 系列信号分析仪中运行
N9081C	Bluetooth Measurement Application, Multi-Touch UI Compliant with Bluetooth® Core Specification Version 2.1+ EDR & Low Energy (BR/EDR/LE 4.0/4.2/5.0) One-button measurements with pass/fail per the standard
N9082C	LTE / LTE-Advanced TDD Measurement Application, Multi-touch UI LTE and LTE-Advanced TDD per 3GPP Release 8 to 12 Includes Uplink and downlink measurements in a single option Carrier aggregation up to five component carriers Runs inside UXA, PXA, MXA, EXA and CXA X-Series signal analyzers with multi-touch UI
N9084C	Short Range Communications Measurement Application, Multi-Touch UI Compliant with ZigBee (IEEE 802.15.4) and Z-Wave RF transmitter tests One-button measurements with pass/fail per the standard Runs inside UXA, PXA, MXA, EXA, and CXA X-Series signal analyzers with multi-touch UI
N6141C	EMI Measurement Application, Multi-Touch UI Built-in CISPR and MIL-STD compliant bandwidths, detectors and band presets Automated testing to regulatory Limit Lines with user-selected margins Amplitude correction for antennas, LISNs, cables, preamps
N9054C	VMA 矢量调制分析应用软件，多点触控用户界面用于猝发分析的 FFT 频谱分析和时域分析工具通用模拟和数字调制分析（可选）在具有多点触控用户界面的 UXA、PXA、MXA、EXA 和 CXA X 系列信号分析仪中运行
N9061C	Remote Language Compatibility Application, Multi-Touch UI Emulate HP/Keysight 856xE/EC or 8566/8568 spectrum analyzers in remotely controlled, ATE systems Migrate 856xE/EC-based or 8566/8568-based ATE systems to seamlessly include a modern signal analyzer

Additional documentation
N9040B-AB1	Korean localization, user interface and getting started guide
N9040B-AB2	Chinese localization, user interface and getting started guide
N9040B-ABF	French localization, user interface and getting started guide
N9040B-ABJ	Japanese localization, user interface and getting started guide
N9040B-AKT	Russian localization, user interface and getting started guide
N9040B-ABE	Spanish localization, user interface and getting started guide

N9040B-RTR	Real-time Spectrum Recorder and Analyzer Application Example, License

频率选件	8.4, 13.6, 26.5, 44, 50 GHz, Mixers to 1.1 THz
大分析带宽	1 GHz
带宽选件	25 standard, 40, 255, 510 MHz, 1 GHz
大实时带宽	510 MHz
实时带宽选件	255, 510 MHz
1 GHz 时的 DANL	-171 dBm
1 GHz 时，10 kHz 频偏处的相位噪声	-136 dBc/Hz
1 GHz 时，30 kHz 频偏处的相位噪声	-136 dBc/Hz
1 GHz 时，1 MHz 频偏处的相位噪声	-146 dBc/Hz
总体幅度精度	±0.16 dB
三阶截获（TOI），1 GHz 时	+22 dBm
1 GHz 时的大三阶动态范围	119 dB
应用——通用	89600 VSA 软件模拟解调噪声系数相位噪声脉冲实时频谱分析 MATLAB
应用——蜂窝	GSM/EDGE LTE/LTE-Advanced NB-IoT W-CDMA/HSPA/HSPA+
应用——无线连通性	Bluetooth® (BR/EDR/LE4.2/5.0) Short Range Communications (ZigBee, Z-Wave) WLAN 802.11(a/b/g/j/p/n/ac/af/ah/ax)
应用——数字视频	无
性能水平	◆◆◆◆◆◆
标准衰减器衰减范围	70 dB
标准衰减器步进	2 dB
100% 截获概率的短信号持续时间	3.51 µs
信掩比 > 60 dB 时的可检测信号持续时间	3.33 ns
无杂散动态范围	78 dBc
多域带宽	255 MHz
显示视图	密度频谱图密度频谱图 PvT（功率随时间的变化）频谱 PvT（功率随时间的变化）频谱图 PvT（功率随时间的变化）
触发	FMT（频率模板触发） TQT（时间限定触发）电平射频猝发线路外置周期 Density Density Spectrogram PvT (Power vs Time) PvT (Power vs Time) Spectrogram Spectrogram
使用频率模板触发的应用软件	89600 VSA 软件实时频谱分析仪 Pulse Measurement Application
2 GHz 时的 DANL，不配备前置放大器	-155 dBm/Hz
10 GHz 时的 DANL，不配备前置放大器	-156 dBm/Hz
可用应用	是
台式	是
Real-Time Data Streaming	是
